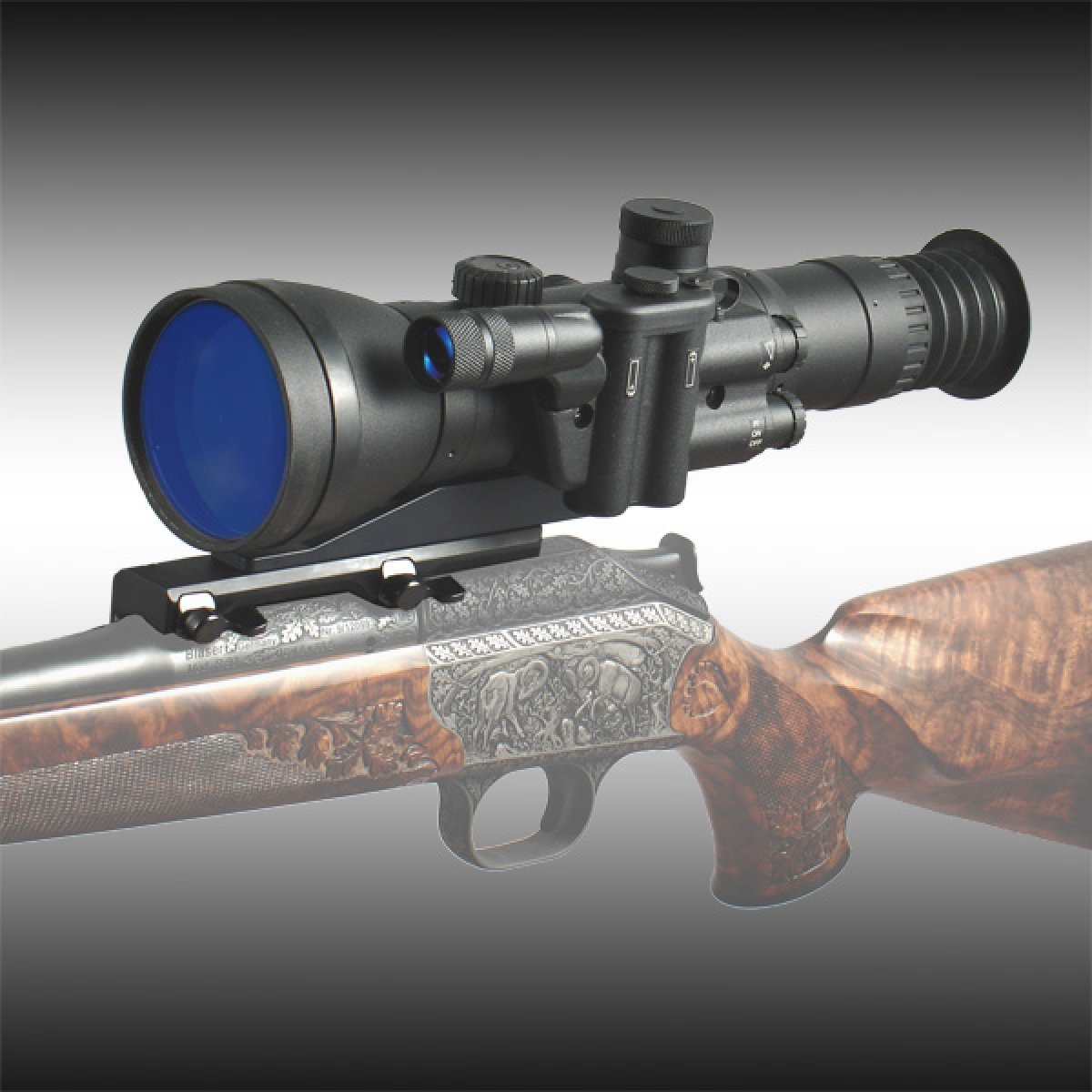

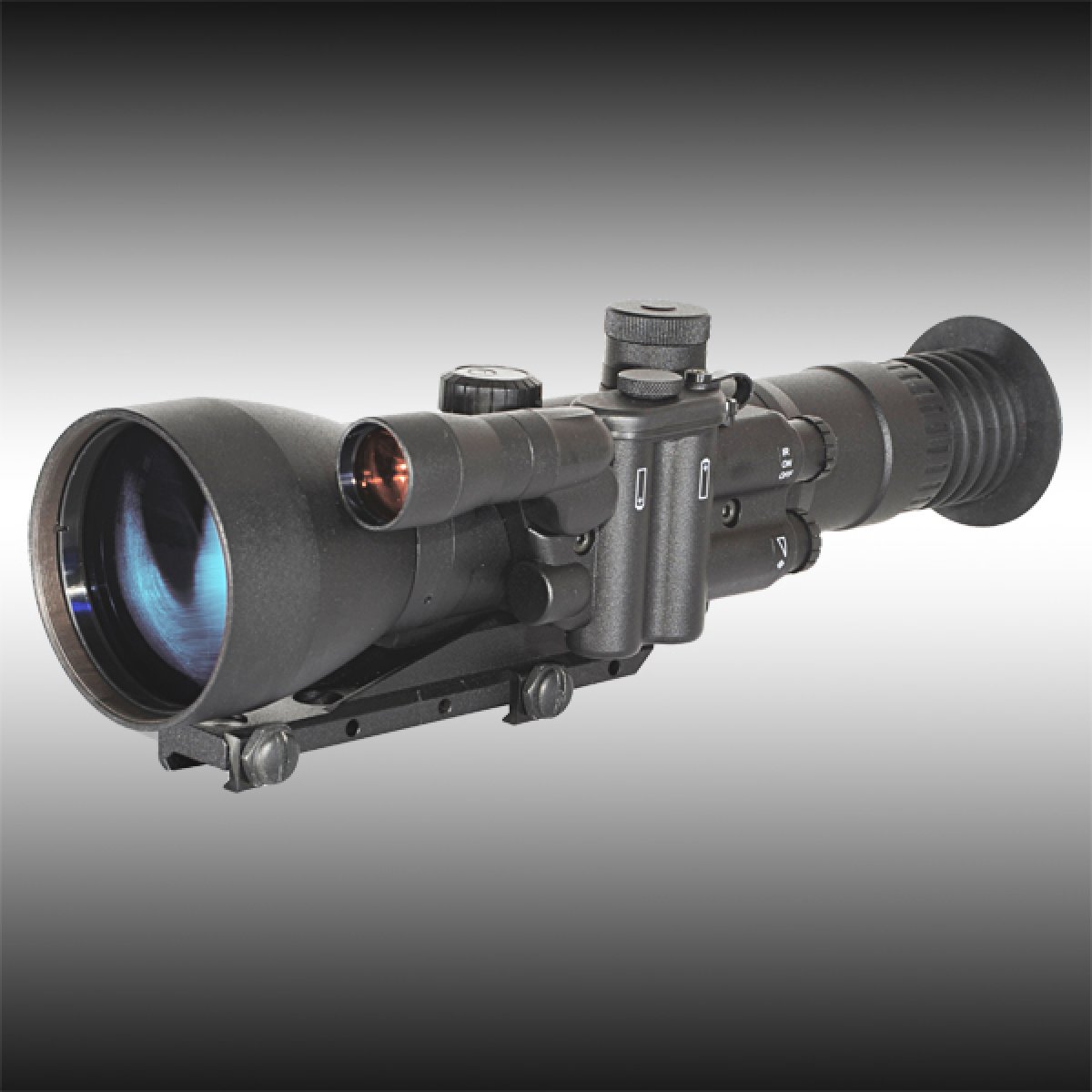

» Night vision riflescope Dedal-450-C
- 4x and 4.4x magnification
- Shockproof with heavy recoil (incl. .375H&H, .50 cal.)
- Special high light transmission optics
- Long eye relief
- Centered MIL-DOT reticle with adjustable brightness at the centre

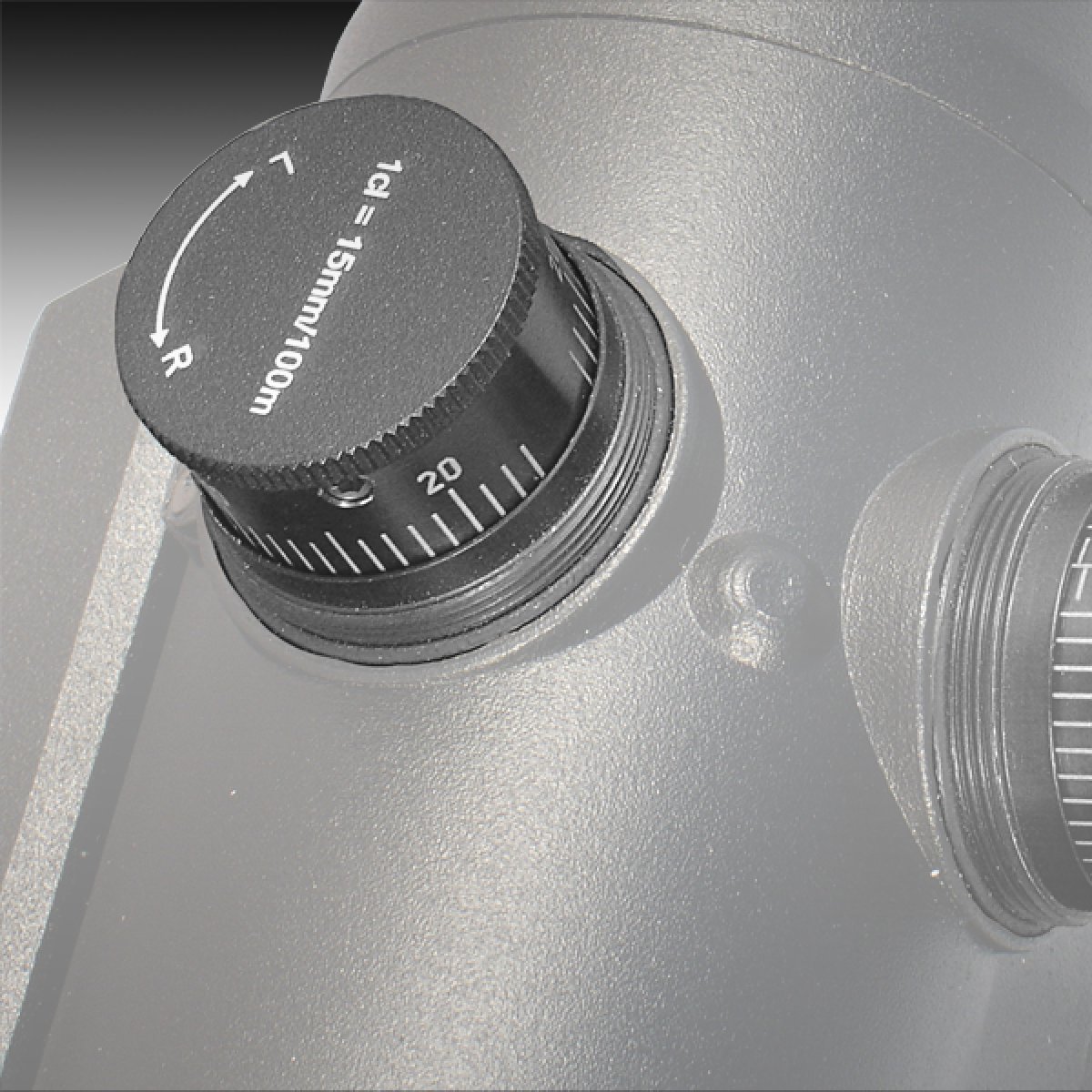

- Precision tactical windage/elevation adjustment (15 mm/100 m)

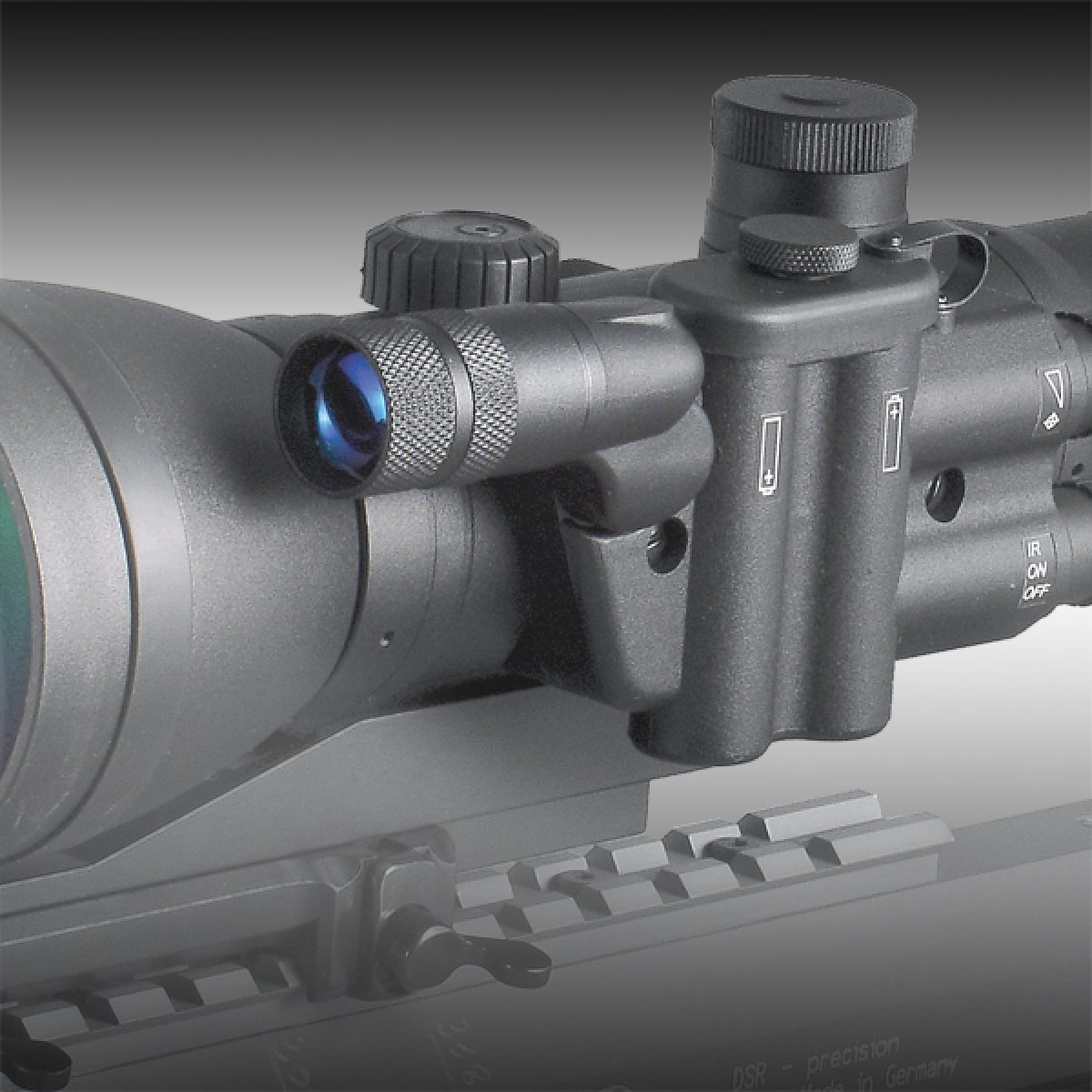

- Powerful hazard-free IR illuminator (75 mW)
- Wide range of mounts
- Waterproof / Weather resistant
- Extremely light weight
| The image intens. tube |
|
|
|
|
|
|
| Gen. |
|
|
|
|
II+ |
|
|
|
| Photocathode sensitivity, μA/Lm |
|
min. 540 |
|
|
|
| Gain |
|
|
|
|
25000-45000 |
|
|
| Resolution, pl/mm |
|
|
|
min. 57 |
|
|
|
| |
|
|
|
|
|
|
|
|
| General |
|
|
|
|
|
|
|
|
| Magnification, x |
|
|
|
4,4 |
|
|
|
| Objective lens |
|
|
|
110mmF/1.5 |
|
|
| Field of view, degree |
|
|
8.0 |
|
|
|
| Diopter setting, D |
|
|
|
+4,-4 |
|
|
|
| Eye relief distance, mm |
|
|
60 |
|
|
|
| Feed voltage, V |
|
|
|
3 |
|
|
|
| Power supply |
|
|
|
AA battery-2pc. |
|
|
| Battery life, hrs |
|
|
|
min. 60 |
|
|
|
| Operating temperature, °C |
|
|
-40 up to +50 |
|
|
| Relative humidity |
|
|
|
98 |
|
|
|
| Dimension, mm |
|
|
|
310x85x75 |
|
|
| Weight, kg |
|
|
|
0,96 |
|
|
|
