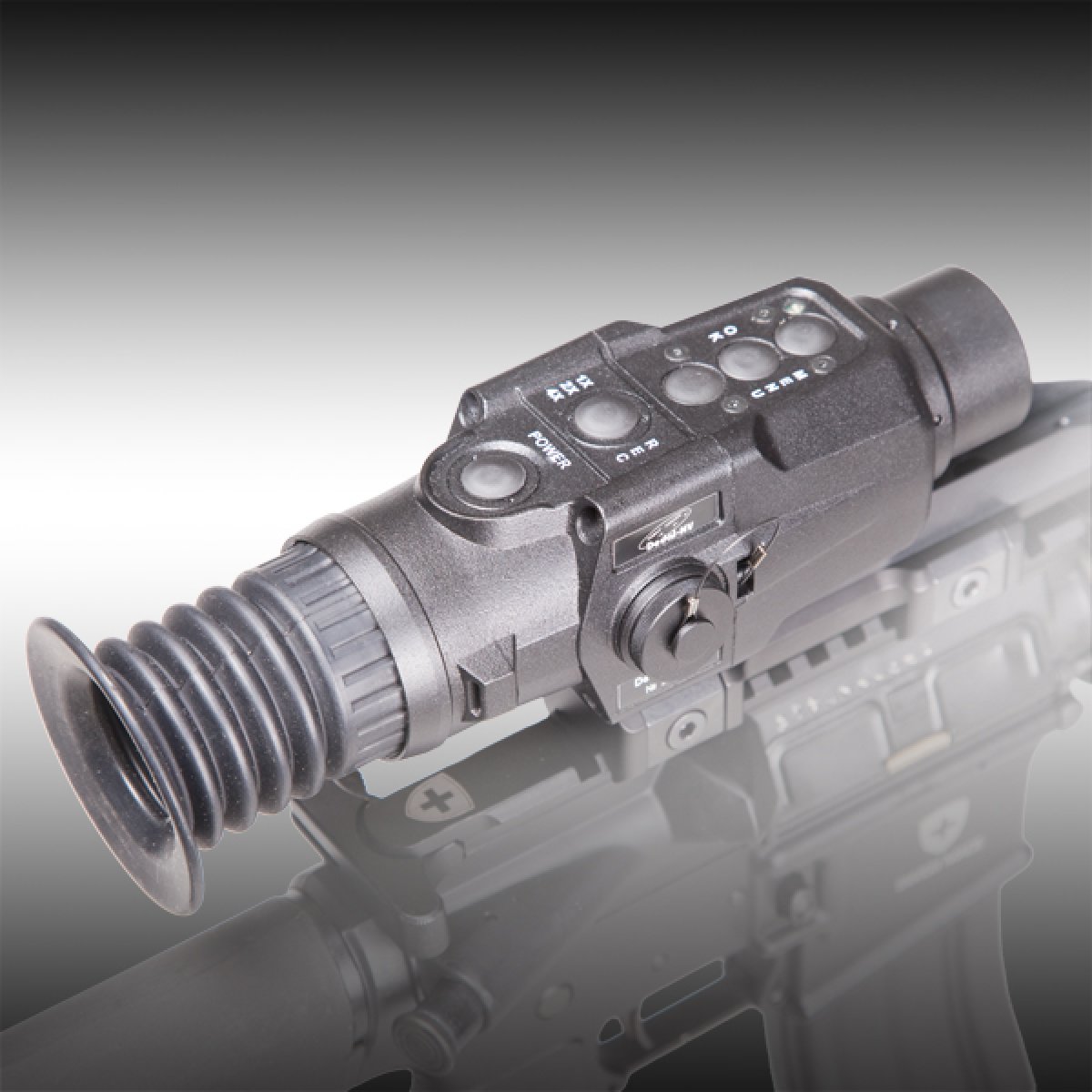

» Thermal vision scope Dedal-T1.322 Pro
- Quick start up (2.9 sec)
- Dynamic contrast system
- Automatic correction of brightness and contrast
- Original ways of digital image processing
- Various variants of aiming reticle
- Keeping up to 8 ballistic adjustments
- Entry and storage of own ballistic adjustments
- Internal focusing precisely keeping an aim point (D-T2, -T4)
- Built-in passive rangefinder
- Possibility of using the device with external range finder (range mark indicator)
- Possibility of using external battery supply
- Video record (video exit)
- Big removal of exit pupil
- Digital zoom 2x, 4x, 8x
- Preliminary input of ballistic reticles
- Compatibility with various weapons
- Waterproof
- Shockproof
- Low power consumption (˃4 hours)
- Compactness / Light weight
| Detector |
|
|
|
|
|
|
| Resolution, pixel |
|
|
384x288 |
|
|
| Rate, Hz |
|
|
|
50 |
|
|
| Detector step |
|
|
25 |
|
|
| Type, |
|
|
|
Uncooled microbolometer |
| Spectral sensitivy range, μm |
|
from 8 to 14 |
|
| Calibration way |
|
|
without shutter |
|
| |
|
|
|
|
|
|
| Objective |
|
|
|
|
|
| Focus distance |
|
|
25mmF/1.2 |
|
| Manual focusing range |
|
no |
|
|
| Optical magnification |
|
1.0 |
|
|
| Field of view angle |
|
|
22x16 |
|
|
| |
|
|
|
|
|
|
| Image Terminal Module |
|
|
|
|
| Matrix type |
|
|
AMOLED |
|
|
| Resolution, Pixel |
|
|
800x600 |
|
|
| |
|
|
|
|
|
|
| Power Supply |
|
|
|
|
|
| Power source type |
|
|
CR123 |
|
|
| Power source quantity, pc. |
|
2 |
|
|
| |
|
|
|
|
|
|
| Physical Characteristic |
|
|
|
|
| Dimension, mm |
|
|
220x71x86 |
|
| Weight, kg |
|
|
0.63 |
|
|
| |
|
|
|
|
|
|
| Operational Characteristic |
|
|
|
|
| Operating temperatures, C |
|
from -40 to +50 |
|
| Relative humidity, |
|
|
98 |
|
|
| Batery life, h |
|
|
4 |
|
|
